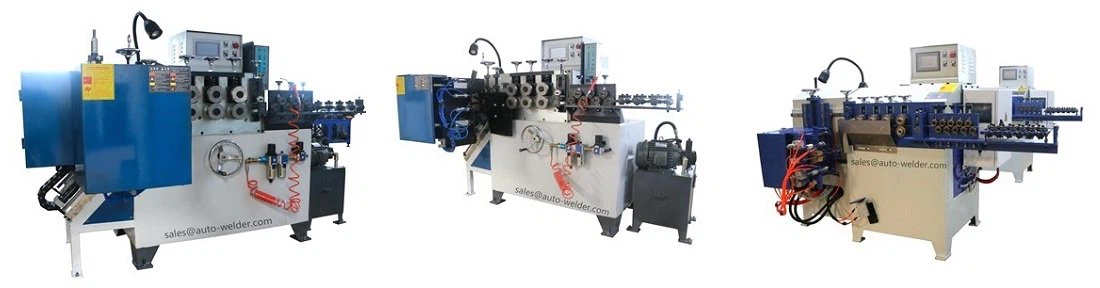

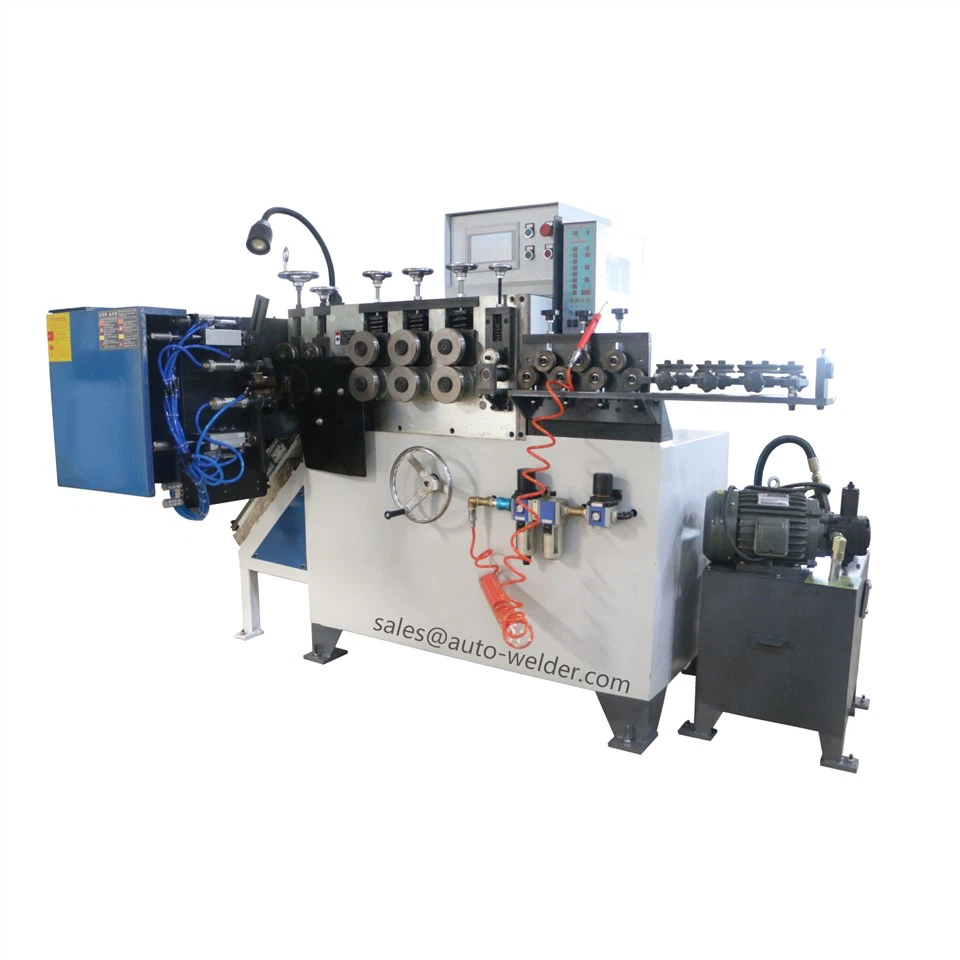

Fan Net Forming Machine

Fan Net forming machine also called Ring Making and Welding Machine. This machine is suitable for wire ring forming and welding on one machine of Fan Net.

Send Inquiry

Description

Description

Fan Net forming machine also called Ring Making and Welding Machine. This machine is suitable for wire ring forming and welding on one machine of Fan Net.

Main Features

1. Fan Net Forming Machine is a fully automatic equipment, it controlled by PLC to complete a series of actions such as feeding, straightening, ring forming, cutting, welding, etc.,

2. Without manual operation, saving energy, saving time and labor;

3. LCD touch screen, quickly and easily set various dimensions of the workpiece ;

4. Servo motor feeding, energy-saving and high efficient;

5. The straightening effect is more better than the traditional one;

6. The control system adopts PLC program control, and the main parts adopt imported components to ensure the high precision and stability of the machine;

7. The welding mechanism adopts pneumatic mechanical arm welding, the action is fast and flexible;

Main Technical Parameters

Model	HL-DD-6	HL-DD-8	HL-DD-6B
Wire Diameter	2-6mm	5-8mm	2-6mm
Min.ID of Ring	60mm	70mm	400mm
Max.ID of Ring	550mm	550mm	1000mm
Servo Motor Power	2.0KW	2.6KW	5KW
Max.Speed	30m/min	30m/min	30m/min
