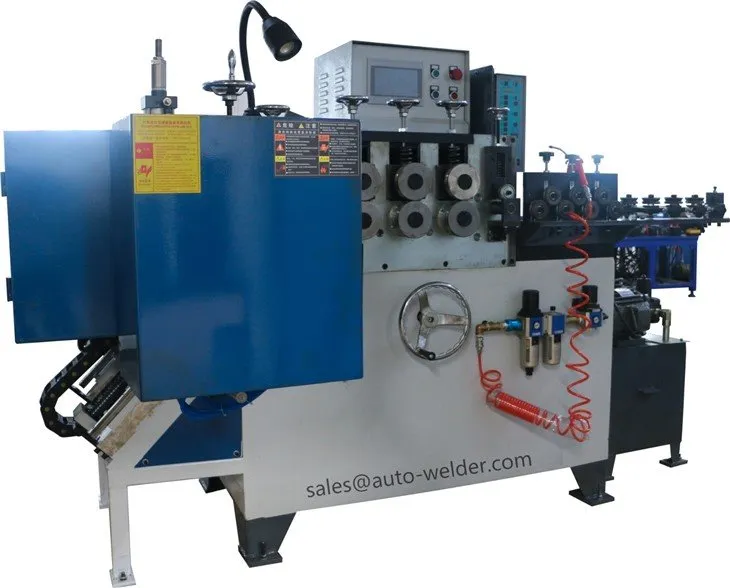

Ring Making And Welding Machines
Ring Making and Welding Machine also called Ring Making with Welding Machine,Ring forming and welding machine.This machine is suitable for ring forming and welding on one machine of metal wires such as iron wire, steel wire and stainless steel. It is one of the special equipment for metal wire processing industry,very popular this two years.
Description
Main Features
1. Ring making with welding machine is a fully automatic equipment that is controlled by PLC to complete a series of actions such as feeding, straightening, ring forming, cutting, welding, etc., without manual operation, saving energy, saving time and labor;
2. The control system is easy to operate, and the LCD touch screen can quickly and easily set various dimensions of the workpiece (different diameters, different diameters, etc.);
3. Servo motor feeding, gas-liquid pressurized cylinder cutting, energy-saving and high efficient, fast and high accurate;
4. The welding mechanism adopts pneumatic mechanical arm welding, the action is flexible, the welding spatter is small, the use is convenient, and the performance is stable; the welding current can be adjusted according to the wire diameter, and the welding transformer is not energized when it is not working, saving energy and electricity;
5. The frame adopts steel structural parts, the whole machine is equipped with reasonable design, stable and convenient operation, long service life and simple and convenient maintenance;
Main Technical Parameters
Model | HL-DD-6 | HL-DD-8 | HL-DD-6B |
Wire Diameter | 2-6mm | 5-8mm | 2-6mm |
Min.ID of Ring | 60mm | 70mm | 400mm |
Max.ID of Ring | 550mm | 550mm | 1000mm |
Servo Motor Power | 2.0KW | 2.6KW | 5KW |
Max.Speed | 30m/min | 30m/min | 30m/min |
Application
Ring Making and Welding Machine is widely used in fan net cover, iron wire crafts, daily hardware and other industries.
Certification
Ring Making and Welding Machine has acquired CE Certification compliance with European Standard EN1004, CCC certification for Chinese high quality standard. our factory also achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this projection welding machine offering excellent safe quality & stable performance.
Our Company
GUANGZHOU DRAGON WELDING CO.,LIMITED is a professional automatic welding equipment manufacturer,which specializes in designing,producing,sale and service together.
Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three-phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,Multi-axis CNC automatic welder, Corner Seam Welding Machine,2D Wire Bending Machine,Ring Making and Welding Machine,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipment.
Packing and Delivery
Our Ring Making and Welding Machine will be strictly inspected before packing and shipping out to insure that they could be satisfied with you, and our packing box is very strong.
Licenses and Qualify
FAQ
Q1: What does your factory produce ?
A: We produce and export all kinds of automatic welding machine and Ring Making and Welding Machine.
We also can design and develop the welding machines according to your requirements.
Q2: What about your standard delivery date ?
A: Usually 20-30 days. Our company provide just-in-time delivery
Q3:Do you sale welding electrodes ?
A:YES,you can buy welding electrodes from our factory or in your local market.
Q4: Do you have CE Certificate?
A: YES,we have.
Q5: Can you export machines by your factory?
A; YES,we can.
Q6: Where are your factory?
A: Our factory located in Guangzhou City, Guangdong Province, China.
We will provide same good after-sale service as the pre-sale service, any of your questions,
we will be replied within 12 hours.
